Product Applications
- It is suitable for the production of cosmetic sound creams, serums, lotions, hyaluronic acid, hyaluronic acid, mask mud, mask liquid, gel, poly-L-lactic acid and other types of washing and care products. According to the characteristics of the cosmetics industry, the flexible use of multi-technology means can meet the special requirements of various aspects of the production process of various types of products, effectively ensure the quality and safety of materials, and provide an ideal platform for accurate processing of products with a wide viscosity range
- Suitable for cosmetics, medicine, daily chemicals, food, chemical and other fields. Such as: facial cleanser, hand cream, dermatitis flat, ointment, hair dye, toothpaste, shoe polish, adhesive, AB glue and other materials
Peculiarity:
- Optional SUS316L stainless steel
- Optional name class operation mode
- The structure of the tank is easy to clean and maintain, and the CIP cleaning system is optional
- The equipment structure is simple, reliable and cost-effective
- All kinds of functions can be customized
Parameter:

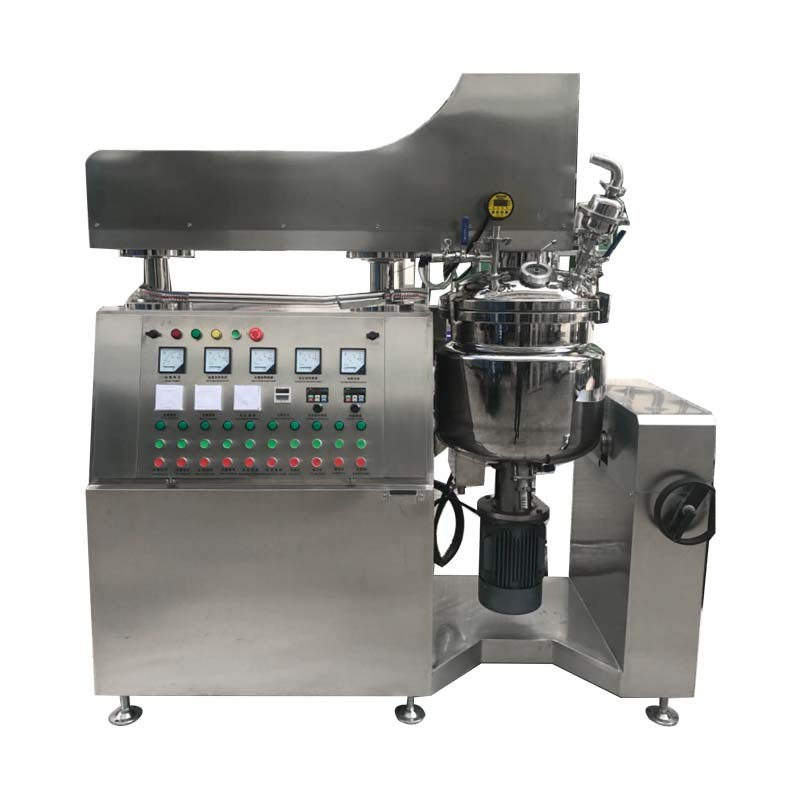

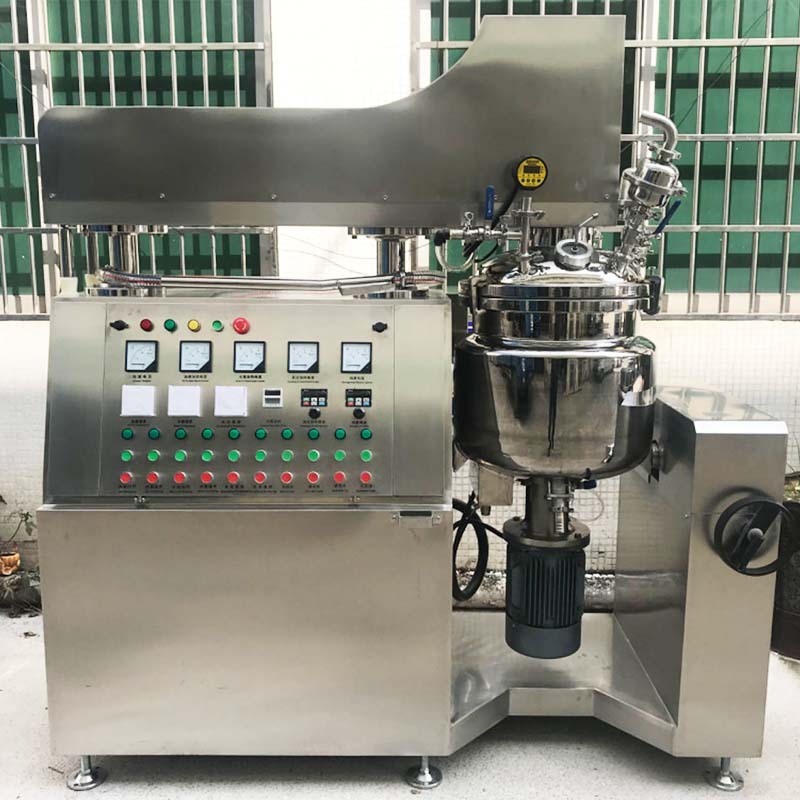

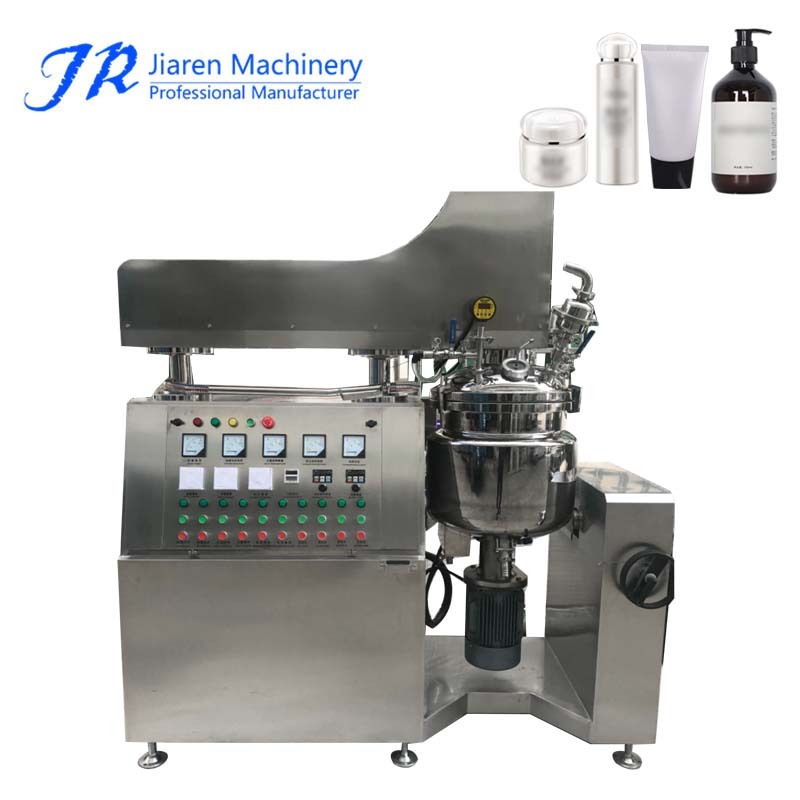

50L hydraulic lifting electric heating vacuum homogenizing emulsifying machine details
Emulsifying pot
|
number
|
disposition
|
brand
|
|
volume
|
Working volume: 50L, design volume: 65L
|
Far East
|
|
mixer
|
Frame type bracket stirring paddle, power: 0.75KW, speed 0-63r/min, scraper is made of integral PTFE class A scraper, Taiwan Delta inverter speed regulation;
|
Siemens joint venture motors
Taiwan Delta
|
|
Homogenizer
|
Bottom-loading type, power: 3KW, speed: 3000r/min, bimetallic water circulation mechanical seal
|
Siemens joint venture motors
Mechanical seals: China
|
|
Pot body
|
1) Stainless steel material: the inner layer SUS316L thickness 5mm, the middle layer 304 thickness 4mm, the outer layer 304 thickness 3mm.
|
Far East
|
|
Heating and cooling method
|
2) The working pressure of the inner pot is -0.085-0.02MPa, and the working pressure of the jacket is ≦0.2MPa, and the insulation material is aluminum silicate fiber cotton
|
Far East
|
|
Temperature display
|
The interlayer is electrically heated, and can also be cooled by water, and the heating power is 6KW*1
|
Pt100
|
|
Discharging method
|
RTD thermometer (less than or equal to 140 degrees)
|
Far East
|
|
Pot
|
Manual dumping and discharge
|
Far East
|
|
How to open the lid
|
Vacuum pressure gauge, sight glass with scraper, feed inlet with filter, feeding hopper, vacuum respirator, sight glass (pot light)
|
Haiou
|
|
vacuum pump
|
aulic station: 1.1KW
|
2BV Sino-foreign joint venture
|
Oil-phase pan
|
number
|
disposition
|
brand
|
|
volume
|
Working volume: 25L, design volume: 30L
|
Far East
|
|
Stirring method
|
Bottom center wave wheel stirring, power: 0.55KW, speed 960 r/min
|
Far East
|
|
How to open the lid
|
Movable lid
|
Far East
|
|
Discharging method
|
Stainless steel all-way ball valve
|
Far East
|
|
Heating method
|
Sandwich electric heating, heating power: 6KW*1
|
Far East
|
|
Temperature display
|
RTD thermometer (less than or equal to 140 degrees)
|
Pt100
|
|
Pot body
|
1. Stainless steel material: the inner layer SUS316L thickness 5mm, the middle layer 304 thickness 4mm, the outer layer 304 thickness 3mm.
|
Far East
|
Aqueous pots
|
number
|
disposition
|
brand
|
|
volume
|
Working volume: 40L, design volume: 48L
|
Far East
|
|
Stirring method
|
Bottom center wave wheel stirring, power: 0.55KW, speed 960 r/min
|
Far East
|
|
How to open the lid
|
Movable lid
|
Far East
|
|
Discharging method
|
Stainless steel all-way ball valve
|
Far East
|
|
Heating method
|
Sandwich electric heating, heating power: 6KW*1
|
Far East
|
|
Temperature display
|
RTD thermometer (less than or equal to 140 degrees)
|
PT100
|
|
Pot body
|
1. Stainless steel material: the inner layer SUS316L thickness 5mm, the middle layer 304 thickness 4mm, the outer layer 304 thickness 3mm.
|
Far East
|
Electrical part
|
Electric cabinet
|
The cabinet is made of stainless steel, Delta inverter, button, indicator light, time delay, ammeter, voltmeter, temperature controller, circuit breaker, AC contactor, relay, transformer, current transformer, and indicator light |
Delixi Electric
|
|
racks
|
Skeleton carbon steel, stainless steel plate
|
Taiwan Delta inverter
|
|
Security
|
It is forbidden to raise the lid in the vacuum state
|
Far East
|
|
After rising, it does not reset, and stirring and homogenization cannot be started
|
|
Automatic pressure relief of jacket overpressure
|
|
Automatic shutdown when mixing homogenization is overloaded
|
|
